Chip-on-Board (COB) and Surface-Mount-Device (SMD) are the two dominant LED packaging methods used in commercial LED displays today. The choice between them affects image quality, durability, viewing distance requirements and cost — and it’s a decision that should be made based on the actual installation, not on which technology is newer or being pushed harder by a supplier.
What’s physically different

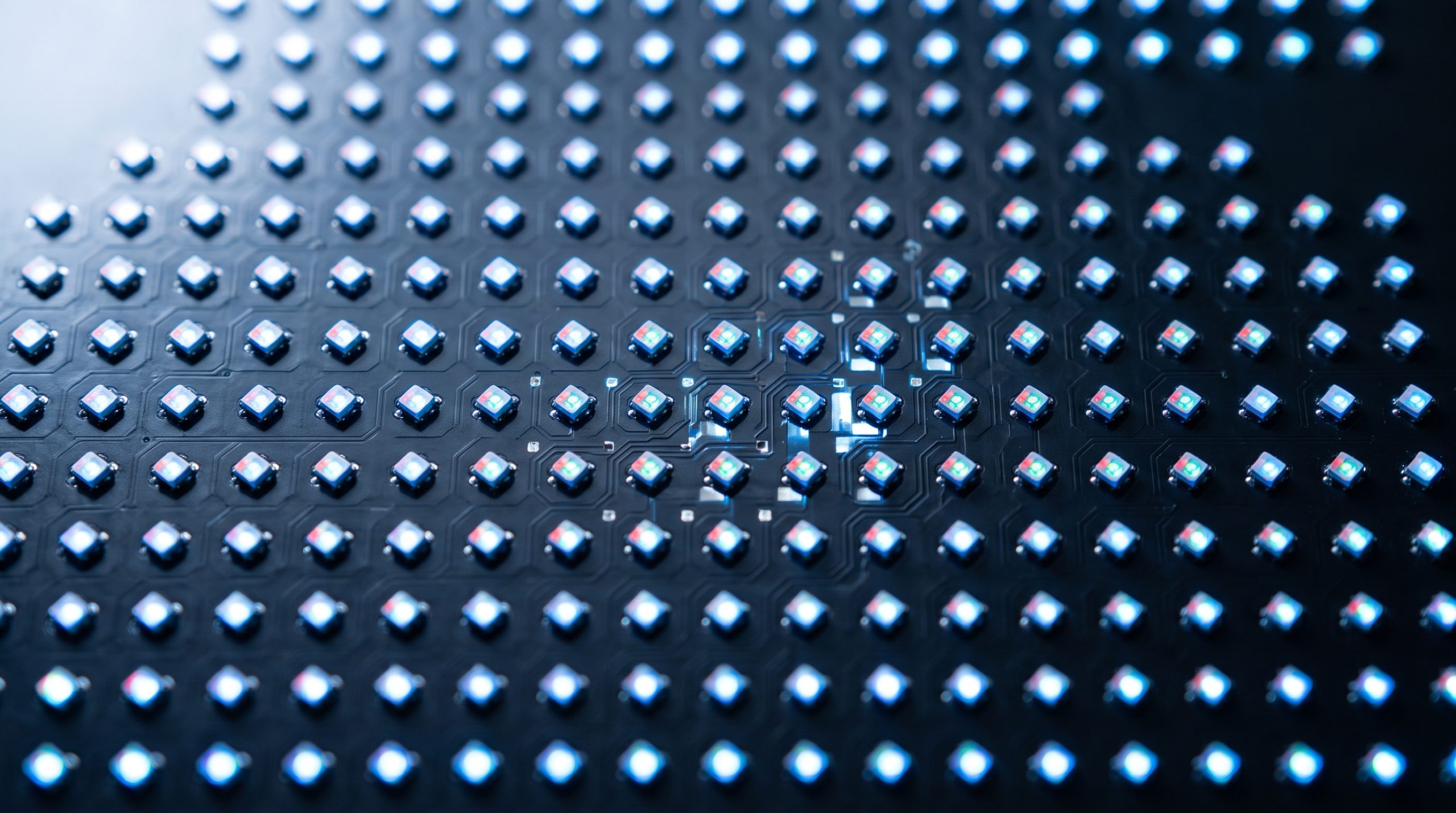

SMD packaging mounts individual pre-packaged LED components (each typically containing a red, green and blue diode encased in a small surface-mount unit) onto a PCB, one discrete component per pixel cluster. COB packaging skips the individual component step: bare LED chips are mounted and wire-bonded directly onto the PCB substrate, then encapsulated under a single protective epoxy layer across the whole module surface. There is no discrete plastic housing per pixel in COB — the entire module surface is one continuous, sealed unit.
Why the packaging difference matters
| Factor | SMD | COB |
|---|---|---|
| Physical durability | Individual LED packages can be knocked loose or damaged by impact | Sealed epoxy surface is far more resistant to impact and pressure |
| Moisture/dust resistance | Gaps between packages can trap dust; needs careful sealing | Continuous surface is inherently better sealed against dust and moisture |
| Pixel pitch achievable | Practical limit around 1.2–1.5mm before packaging density becomes a constraint | Can go finer (sub-1.0mm to sub-0.9mm) because chips are bonded directly, not packaged individually |
| Viewing angle | Very wide, typically 140°+ horizontal, consistent brightness off-axis | Good but can fall off slightly more at extreme angles depending on encapsulation design |
| Moire/graininess at close range | More visible pixel structure up close | Smoother, more uniform surface appearance up close, favoured for control rooms and close-viewing applications |
| Repair method | Individual LED packages can sometimes be desoldered and replaced | Module-level replacement is more common since chips aren’t individually serviceable |
| Typical cost | Lower per m² at comparable pitch | Higher per m², reflecting more complex bonding process |
Where each makes sense
SMD remains the practical default for the majority of commercial digital signage: retail LED walls, event screens, outdoor billboards and fascia displays viewed from a few metres or more, where its wide viewing angle, established repair ecosystem and lower cost per square metre outweigh COB’s durability edge. It’s also generally easier to source replacement modules for, since SMD is the more widely manufactured format.
COB earns its premium in specific scenarios: control rooms and command centres where screens run continuously for years and are viewed up close, rental/touring LED panels that get handled, transported and reassembled constantly (where impact resistance matters), and ultra-fine-pitch interior walls in corporate lobbies or broadcast studios where seamless image quality at close range is the priority over cost.
Durability in the UAE context
For outdoor UAE installations exposed to dust storms, heat cycling and occasional heavy rain, COB’s sealed-surface construction offers a genuine advantage against dust ingress into the pixel structure, one of the more common causes of pixel failure on poorly sealed outdoor SMD walls over time. That said, well-engineered outdoor SMD products with proper IP-rated cabinet design and conformal coating close much of this gap — the packaging technology matters less than the overall cabinet and sealing engineering around it.
FAQ
Is COB always better than SMD?
No. COB has real advantages in durability and pixel density, but SMD is more cost-effective, easier to repair at the component level, and perfectly adequate for most standard signage and video wall applications.
Can COB and SMD panels be mixed on the same video wall?
Not recommended within a single continuous wall — brightness, colour calibration and pixel structure differ enough between technologies that mixing them visibly on one surface causes inconsistency.
Which technology is better for outdoor UAE signage?
Both are used outdoors successfully; COB’s sealed surface offers a dust/moisture advantage, but a well-built IP65-rated SMD cabinet performs reliably too. The cabinet engineering matters as much as the LED packaging choice.
Does COB cost significantly more than SMD?
Yes, typically a noticeable premium per square metre at comparable pitch, reflecting the more complex chip-bonding manufacturing process.
Which is easier to repair on site?
SMD generally allows more granular repair since individual LED packages can sometimes be replaced; COB repairs are usually done at the module level.
Metroplus specifies COB or SMD LED solutions based on the actual viewing distance, environment and budget of each project. Contact us to get the right recommendation for your installation.
